Electronic XHYB-10/100 High Voltage Test Transformer AC DC Hipot Tester 10kVA 100kv
XHYB-10/100 AC/DC high voltage test transformer/withstand voltage tester
- XHYB-5/100 High voltage test transformer is make of two parts. one is test transformer, Another is operator instrument.
- This product was an combined-type voltage transformer which design and manufacture according to the avtual needs of grassroots power supply departments and production departments. This 110kV, 0.05 level voltage transformer was high voltage grade and high accuracy that could used to check voltage transformer that below 110kV,0.1 level.
- It is used for the frequency internal tooth test and cable fault detection of various electrical equipment. Separately output 0~250/400V AC power.
- There are AC/AC series/AC/DC dual-use/series AC/DC dual-use, etc.
- Oil type, dry type, inflatable type
- It has functions such as over-current, zero start, etc.; it can display values such as voltage and current.
- Equipped with over-current relay, electric/manual adjustment of output voltage (according to requirements)
- 1.Compact structure,small volume,convenient to carry;
- 2. No need to maintain, wiring simple operation;

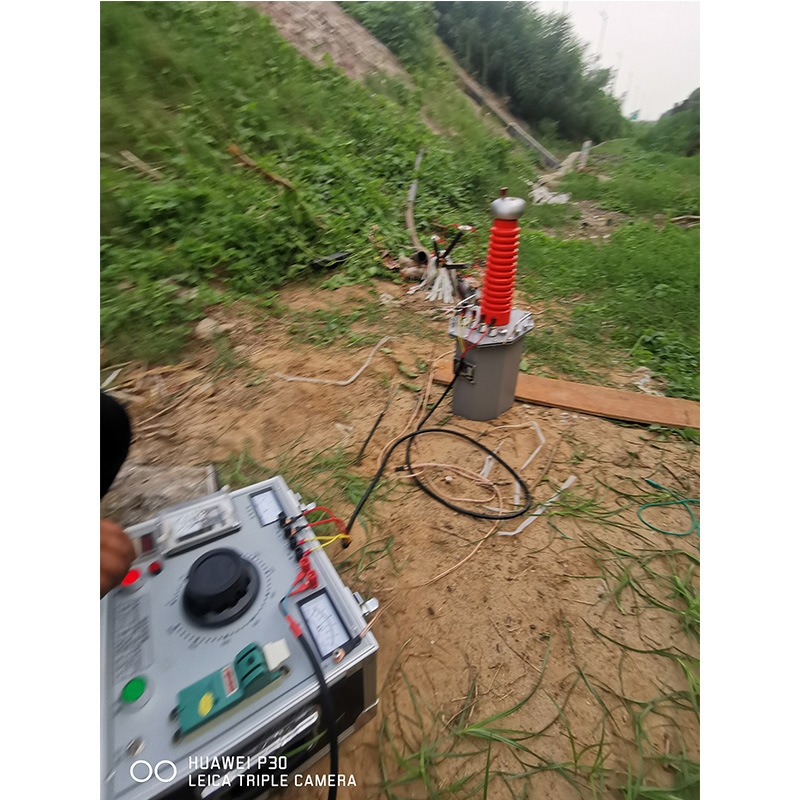

- For field use, or as the standard voltage transformer and the test transformer in the laboratory.
- 3. Suit to short cable, the small small volume capacitance
- 4. Standard: DL/T848.2-2004
| Rated nominal capacity | 10KVA |
| Output voltage | AC 100KV, DC140kV |
| Input voltage of operation box | AC220/380V |
| AC output current | 100mA |
| DC output current | 100mA |
| Output voltage of operation box | AC0~250/400V |
| loss | No load loss≤15%, load loss≤15%, total loss≤10% |
| No-load current | ≤30%, Impedance voltage≤15%, turn ration error≤+/-1% |
| Over current protection | Continuous adjustable, manual setting |
Application: high voltage cable AC hipot test, high voltage cable fault location, transformer hipot test, etc.
English version available
We can customize according to your requirements.
Welcome you contact us for more service.
Packaging: Wooden case filled with foam
Shipping: by Air, Sea, Express, etc.
Shipping time: 7-15 days if it's in stock.
